Please click here to see comparison chart of the latest test data.

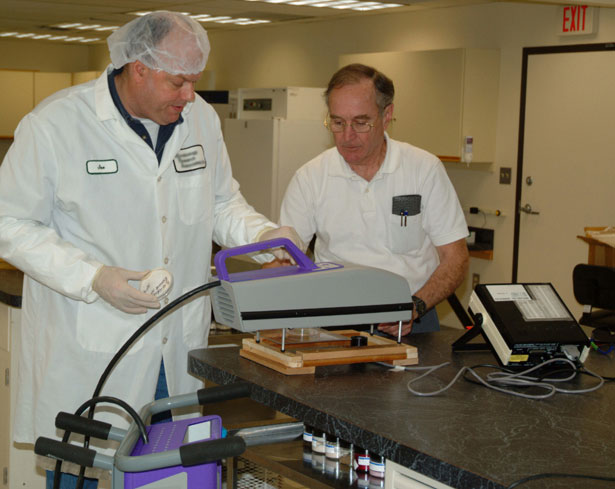

Setting up GermBuster™ to test Bacillus atrophaeus


Setting up Model 1 of the Far-UV Sterilray™ Disinfection Wand to test Bacillus atrophaeus.

Please click here to download Far-UV Test Summary Data 2007-2010

Lab Reports

Far-UV Sterilray™ of Somersworth, NH used the first generation Far-UV Sterilray™ Disinfection Wand to irradiate various samples of bacteria and the Feline calicivirus at two different labs in Massachusetts.

Method and Equipment:
The method required placing the Far-UV Sterilray™ Disinfection Wand containing a special low efficient Sterilray™ lamp on top of a wood holder. This holder provided a 2 inch separation from the Sterilray™ lamp to the bottom of the Petri dish. The Petri dish containing the sample of bacteria/virus was then placed onto a Plexiglas plate that was positioned under the Disinfection Wand.

Subsequently, a recently calibrated International Light IL1800 radiometer using a SHD022 photo detector was placed next to the sample so that the detector was at the same distance as the bottom of the dish (sample location). Next, the radiometer was zeroed and then put into integrate mode prior to turning on Sterilray™. The irradiance (energy/cm2) was then measured and recorded along with the time of exposure.

The Far-UV Sterilray™ Disinfection Wand has three power settings; Smooth (low), Texture (medium) and Deodor (high). Far-UV Sterilray™ conducted all tests with a special low-power Sterilray™ lamp in order to control the amount of exposure. Typical treatment times with this bulb ranged from 5 seconds to 30 seconds using one of the three power settings. The lamp is approximately 1/30 the power that will be used in the sanitation wand. These times would be reduced by 30-35 times with a standard Sterilray™ lamp. A standard Sterilray™ lamp would achieve the same or better results with exposures of less than 1 second.

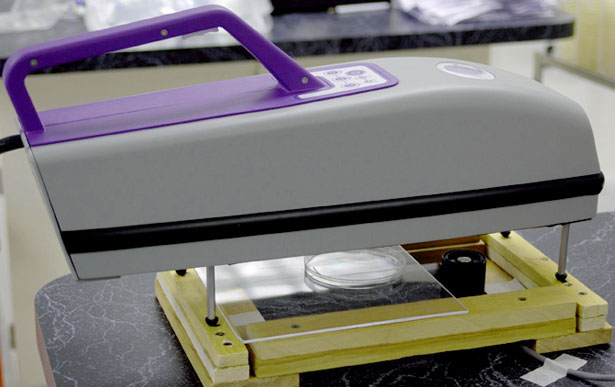

GermBuster™ ready to expose Bacillus atrophaeus


Model 1 of the Far-UV Sterilray™ Disinfection Wand ready to expose Bacillus atrophaeus.

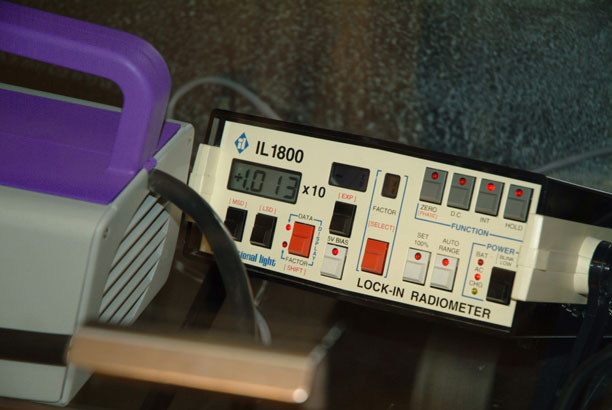

International Light IL1800 radiometer

International Light IL1800 radiometer.

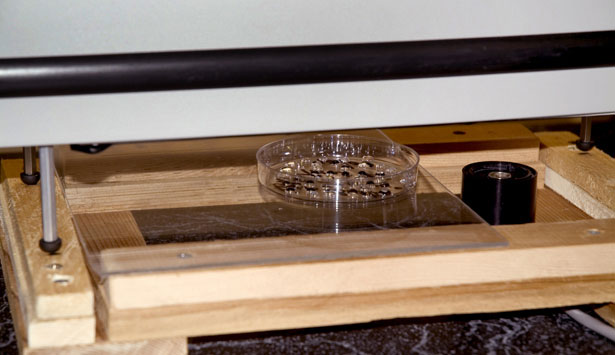

SHD022 Photodetector can be seen to the right of petri dish

SHD022 Photodetector can be seen to the right of petri dish.

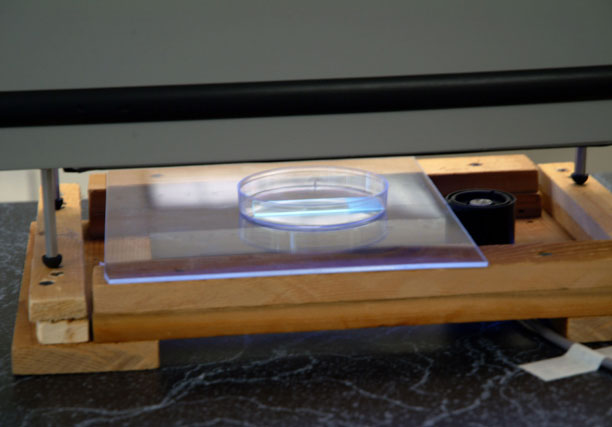

Exposing petri dish containing slide with Bacillus atrophaeus

Exposing petri dish containing slide with Bacillus atrophaeus.
